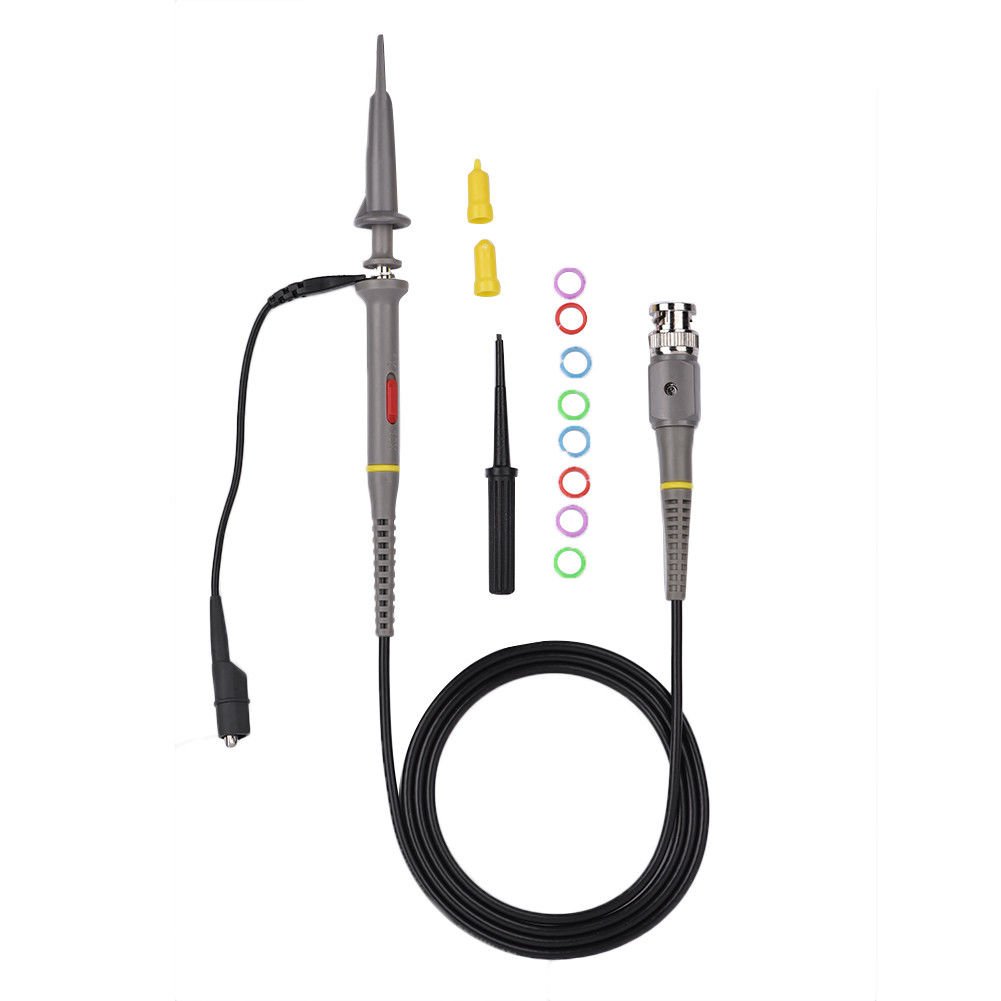

P6020 20Mhz Oscilloscope Probe 1X/10X 10MΩ Clip Handheld Scope Cable Kit

P6020 20Mhz Oscilloscope Probe 1X/10X 10MΩ Clip Handheld Scope Cable Kit Description: This oscilloscope probe is a high quality piece of test equipment designed to make probing and measurement a much easier task. In addition, this probe adopts injection molding style ground wire for prolonging its service life and ensuring reliable contact. Features: 1. Attenuation ratio (1x and 10x ). 2. Ergonomic design, lightweight and portable. 3. Overall injection molding, more flexible, it can be used for more test occasions. 4. Safety regulations: pass through the CE certification. 5. Compatible with the corresponding frequency digital analog oscilloscopes at home and abroad. 6. Medium and low frequency signal measurement. 7. Locating sleeve: Suitable for IC testing. 8. Adjusting tool: Adjust the compensation capacitor to ensure that the probe can be matched with oscilloscope. Specifications: Model: P6020 Attenuation: 1x, 10x Input resistance: 1MΩ,10MΩ Input capacitance: 1x: 85pF~115pF; 10x: 18.5pF~22.5pF Compensation range: 15pF~45pF System bandwidth: 1x: DC-6MHz; 10x: DC-20MHz Input voltage 1x:
